Frequency: 2.4GHz
Gain: 15*2dBi
Name: WIFI Wlan Antenna
Feature: WIFI Wlan MIMO Antenna
Use: WIFI Wlan MIMO Sector Antenna
Style: WIFI Wlan MIMO Sector Panel Antenna
Other: MIMO Antnena High Gain
Horizontal Beamwidth: 120 degrees
The Sector Panel Antenna which comes with 2 connectors, is an Outdoor External directional antenna, point to point.
Normally works for base station, routers, amplifiers/repeaters/boosters.Multi funcational. Even for Huawei Routers with SMA connectors and long cables.
Accessory compatubility :Couplers and splitters.
a). DCS Frequency Range, 2.4GHz
b). Designed for outdoor use only
c). It comes with U Bolts and other accessories.
d). It can be installed into vertical way or horizontal way.
e). Easy to install.
Product Data Sheet:
| ELECTRICAL |
| Model | DT-SPA2400-16*2-120 |
| Frequency Range | 2400-2500MHz |
| Gain | 16*2dBi |
| Beamwidth | H: 120° , E: 8° |
| VSWR | ≤1.5 |
| F/B Ratio | ≥20dB |
| Polarization | Vertical and Horizontal or ±45° |
| Max Power | 100W |
| Nominal Impedance | 50Ω |
| Lightning Protection | DC Ground |
| MECHANICAL |
| Connector | N Female *2 or customized |
| Antenna Dimension | 910*180*65mm |
| Weight | 5kg |
| Radome Material | UPVC |
| Diameter of the Pole | Φ50-105mm |
| Rated Wind Velocity | 60m/s |
| Connector Position | Bottom |
Our Factory Review:

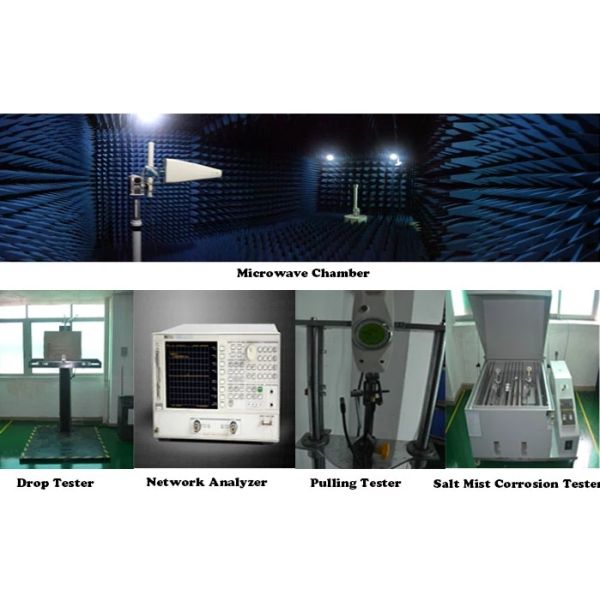

Our Technical Rooms for Testing:
Introuduction of our company:
By following of the ISO9001 standard management systems , now Deertom has obtained many honors and
certifications like RoHS and CE . Our main products include 5G Antennas, TV Antennas, VHF/UHF Antennas,CDMA Antennas,
GSM Antennas,DCS Antennas,PCS Antennas,GPS Antennas,3G UMTS Antennas, WIFI Antennas,
4G/LTE Antennas ,WiMAX Antennas,Wlan Antennas,5GHz/5.8GHz Antennas; indoor outdoor antennas ,
base station antennas ,CPE Antennas , RFID Antennas , repeater antennas, indoor distributed antennas,
decorative antennas ; RF Cable , RF Connectors , RF Pigtail Cables ; and also passive RF Components
such as Splitters Couplers , Surge Lightnings Protectors ,etc .
Based on the strict quality control ,now Deertom has won a lot of big companies’ trust , like China Mobile , China
Telecom , China Unicom , Huawei ,ZTE,etc .Our markets also cover worldwide countries . But we never stop
innovating , instead we are devoting ourselves to providing our customers the better quality , service with
competitive price .
RFQ:
If you have any question, please feel free to give us an email or message.
Dave Chiou
Email address: sales@deertom.com
wechat/what'sApp: +86 150 1944 1310
Our Company cases from other countries:
We are contributing to build more and more over the worldwide.Thanks for choosing Deertom.
|
|
2.4GHz WIFI Wlan MIMO Sector Panel Antenna 15dBi*2 120 Degrees High Gain Images
|
